FT-102D
直接聯系
寧波瑞柯微智能科技有限公司
浙江寧波

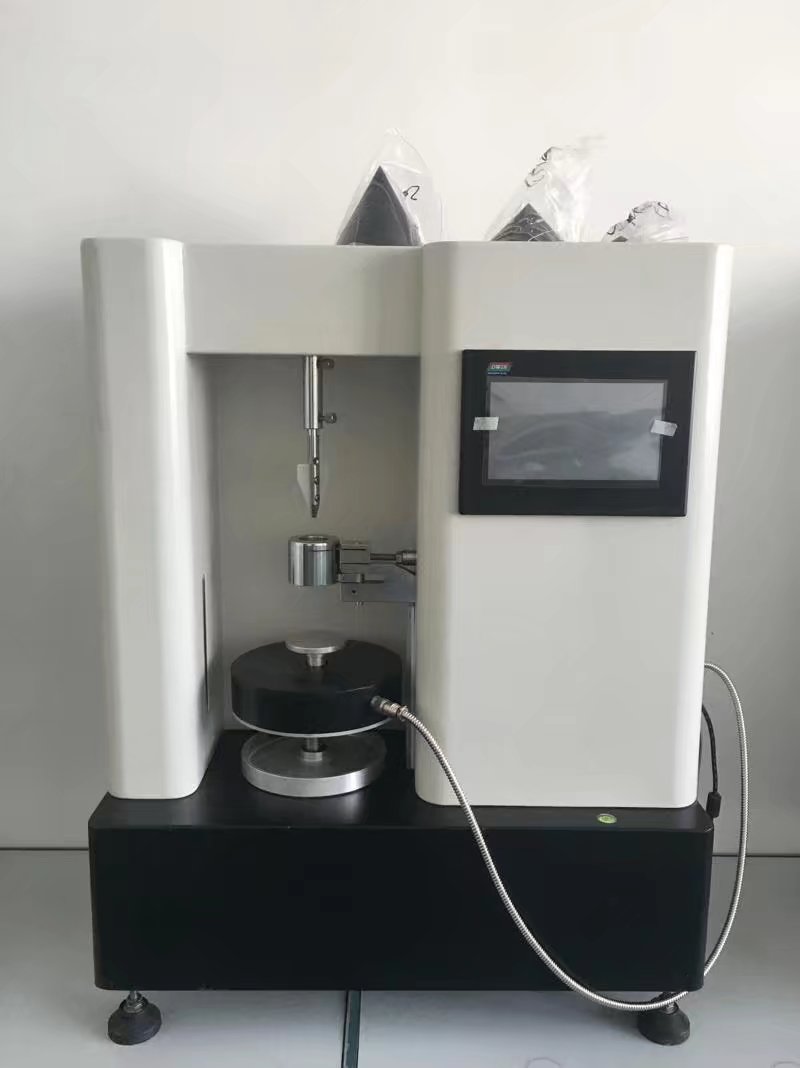

FT-102D粉體性狀測定儀
FT-102D Powder Characteristics Tester
通過對粉末和顆粒振實密度、松裝密度、堆積密度、安息角（休止角）、質量流速、體積流速項目測量,綜合反映粉體流動性和表征特性狀況，通過卡爾指數，豪斯納比指數綜合評定物料流動性狀況.
The instrument is mainly based on the powders and granules of tap density, apparent density and bulk density, angle of repose (angle of repose), mass flow, volume flow rate measurement project to reflect comprehensively the flowability and characterization of the powder, comprehensive evaluation of material flowability by Carr index, Hausner ratio index.
參數資料Technical Parameters
序號/No. | 功能/ Function | 量程/Range | 分辨率 Resolution | 測試方式/ Test mode |
1. | 松裝(自然堆積)密度/ bulk density | 0-999.9999g/ml | 0.0001g/ml | 1.自動記錄質量Automatic 2.輸入體積Input Volume |
2. | 振實密度 tap density | 0-999.9999g/ml | 0.0001g/ml | 1.定質量測試Fixed Quality Test 2.定體積測試Fixed volume test |
3. | 安息角（休止角） angle of repose | 0-90 ° | 0.01 ° | 1.自動計算Automatic calculation 2.PC軟件過程數據曲線 PC software process data curve |
4. | 質量流速/ Mass flow rate | 0-9999.999g/s | 0.001 g/s | 1.自動計時并停止Automatic timing 2.自帶稱重平臺weighing platform 3. PC軟件過程數據曲線 PC software process data curve |
5. | 時間/ time | 0-999999.99S | 0.01s | 自動/ Automatic |
6. | 稱量平臺/Weighing | 0-2000.0g | 0.01g | 自動/ Automatic |
7. | 漏斗容積/ funnel volume | 200ml | ||
8. | 量筒選購/Cylinder optional | 200ml、250ml、500ml不銹鋼材質（標配1個）Stainless steel (standard 1pcs) | ||
9. | 圓盤/ disc | 直徑100mm/ diameter 100mm | ||
10. | 攪拌裝置/Stirring | 固定轉速/ Fixed speed | 自動/ Automatic | |
11. | 漏斗出口口徑mm Funnel exit (mm) | 2.5；4.0；5.0；6.0；7.0；8.0；9.0；10；14；15；16；17；18；25（標配5個）/ Standard 5pcs | 可更換結構/ Replaceable structure
| |
12. | 出口配有控制閥門/ Outlet valve | 氣動控制/ Pneumatic control | 自動/ Automatic | |
13. | 顯示器 monitor | 7寸觸摸屏/ 7-inch touch screen | ||
14. | 溫濕度范圍/Temperature humidity | 18-40℃ 相對濕度在35-80% relative humidity | ||
15. | 流動指數 Flow Index | 自動轉化指數數據/Automatic conversion index data | 自動/ Automatic | |
16. | 輸入電源power supply | 220V±10% 常溫環境下使用 under normal temperature environments | ||
配置打印機+觸摸屏操作+自動流動性評定 Configure the printer + touch screen operation + automatic liquidity assessment | ||||
