【規格參數】 Specification
尺寸/Dimension Φ100~450mm×L100~460mm Φ400~800mm×L700~1500mm
溫度/Temperature 100~280℃ max 420℃
線速度/Linear Speed 5000m/min max500m/min
表面處理/Surface Treatment 鍍硬鉻/陶瓷/鏡面/鏡面或梨面Hard-chrome plating / Ceramic coating / mirrorfinish/mirror/mat finish
【產品描述】 Product Description
合成纖維熱處理軋輥(簡稱熱輥或導絲輥),從航空航天領域到民用服裝面料,在具有高強度、優良耐熱的化學纖維、獨特質感的新合成纖維的制造工藝中,邊加熱邊拉絲的“熱拉伸”是一個重要的工藝。在該工藝中,聯凈感應加熱導絲輥通過高速旋轉拉伸對纖 維進行高精度熱處理,整合分子排列,形成均一結晶。可以加工出質地均勻的高品質材料。
In the thermal drawing process, fibers are drawn at high speeds as heat supplied. This is a key advantage in the production of ultra-strong, highly heat-resistant super fibers and new synthetic fibers with distinctive textures.

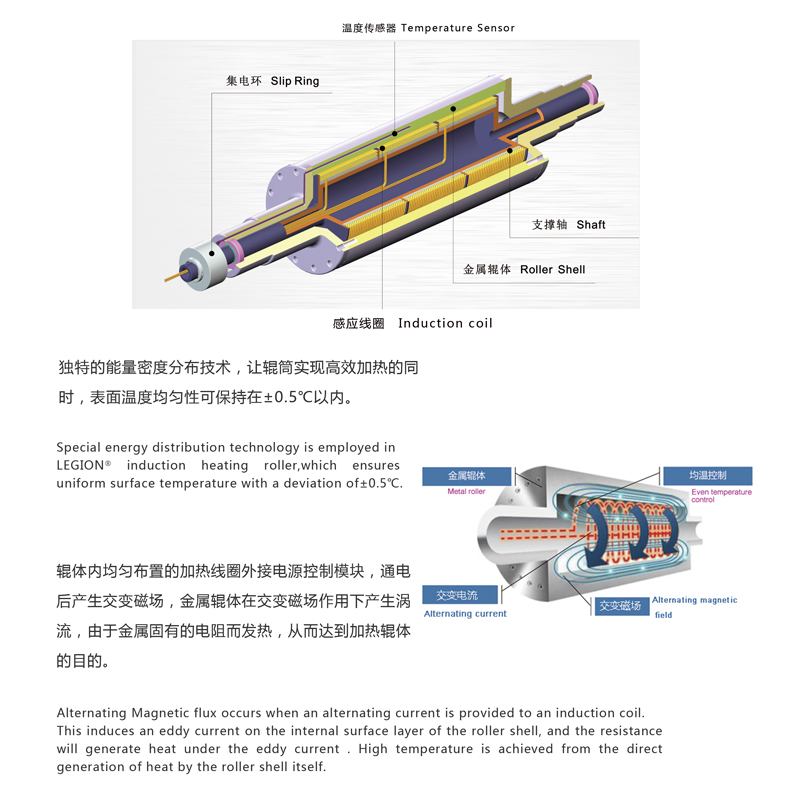

LEGION? induction heating godet roller provides thermal drawing of fiber at high speed with ultra-high precision.This achieves precise molecular orientation,promotes uniform crystallization without distortion, and yields strong,highly uniform materials.
