產品概述
ODMC-5CS系列脈沖噴吹控制儀是歐頓公司設計的第五代單片機控制脈沖噴吹控制儀，實現按鍵參數設定、數碼顯示、各種參數可調等功能，操作簡單，元器件均采用進口產品，質量穩定，是脈沖袋式除塵器噴吹清灰系統的主要控制裝置，它的輸出驅動電磁脈沖閥，進而控制壓縮空氣對濾袋循序噴吹清灰，使除塵器的定的范圍內，以保證除塵器的處理能力和收塵效率。
ODMC-5CS pulse jet blowing control instrument for Orton company design of the fifth generation of the SCM control pulse jet blowing controller and achieve the key number set, digital display, various parameters can adjust function, the operation is simple, the components are used imported products, quality and stability is pulse bag type dust collector blowing ash system as the main control device, its output driving electromagnetic pulse valve, so as to control the compressed air to bag sequential injection blowing, dust collector fixed range, to ensure the dust remover's processing power and dust collection efficiency.
控制儀每次輸出一位的驅動電壓，一個驅動電壓持續時間，稱為脈沖寬度:
相鄰二個輸出驅動電壓之間的間隔時間，稱為脈沖間隔。
控制儀完成對所有位的電磁閥驅動輸出所需要的時間，稱為脈沖周期。
兩個脈沖周期之間的停頓時間，稱為循環間隔。
The control apparatus outputs a driving voltage at each time, a driving voltage duration, called the pulse width;
The interval between two adjacent outputs driving voltage, called the pulse interval.
The control system is completed on the time required for the output of all the solenoid valves to drive the output, called the pulse cycle
The pause time between the two pulses is called a cycle.
型號含義
使用技術指標
| 額定輸入電壓 Input voltage | AC220V(1±10%)50HZ-60HZ (或其它規格or another specification) |
| 額定輸出電壓 Output voltage | DC24V AC220V(或其它規格or another specification) |
| 額定輸出電流 Rated output current | 1A |
| 耗電 Power consumption | ≤8W |
| 輸出脈沖寬度調節范圍 Pulse width | 0.1-0.9 sec |
| 輸出脈沖間隔調節范圍 Pulse intenal | 1~999 sec |
| 周期間隔調節范圍 Cycle interval | 無 |
| 控制輸入信號 Control signal | 開關觸點Contact Switch |
| 使用環境 Working environment | -25℃~+55℃ 空氣的相對濕度不超過85%;無嚴重的腐蝕氣體和導電塵埃; 無劇烈震動或沖擊 |
型號規格

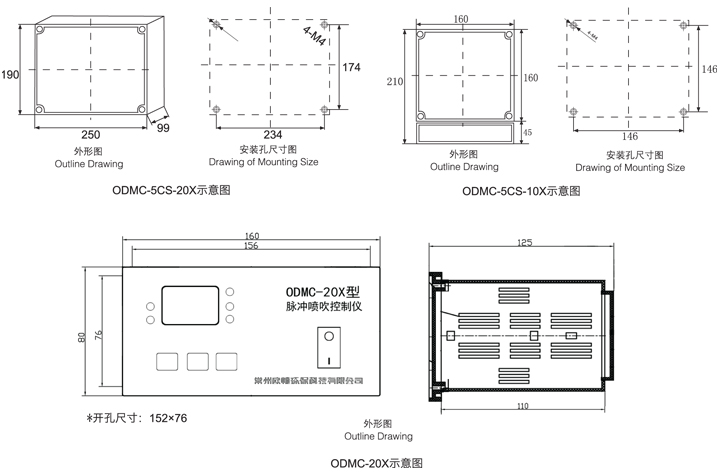

| 型號規格 Type | 輸出位數 Output digits | 控制閥數量 Number of controlling valves | 外形尺寸Size(L×W×H) A:210×160×70 B:245×190×96 C:160×115×80(開孔:152×76) |
| ODMC-5CS-5 | 5 | 1~5任選 | A |
| ODMC-5CS-10X | 10 | 1~10任選 | A |
| ODMC-5CS-15 | 15 | 11~15任選 | B |
| ODMC-5CS-20X | 20 | 11~20任選 | B |
| ODMC-20X-5 嵌入式 | 5 | 1~5任選 | C |
| ODMC-20X-10 嵌入式 | 10> | 1~10任選 | C |
| ODMC-20X-15 嵌入式 | 15 | 11~15任選 | C |
| ODMC-20X-20 嵌入式 | 20 | 11~20任選 | C |
安裝方法
擰去控制儀盒蓋四角的緊固螺栓，即能取下盒蓋，控制儀盒底外殼四角上的通孔是用于安裝固定螺釘的，用M4十字螺釘固定。
