ODMC-6CSB
直接聯系
江蘇歐頓環?？萍加邢薰?/p>
面議
OMTON
ODMC-6CSB
2849
--
是脈沖袋式除塵器噴吹清灰系統的主要控制裝置
是脈沖袋式除塵器噴吹清灰系統的主要控制裝置
產品概述
ODMC-6CSB脈沖噴吹控制儀是脈沖袋式除塵器噴吹清灰系統的主要控制裝置。它的輸出驅動電磁脈沖閥，進而控制壓縮空氣對濾袋循序噴吹清灰，使除塵器的運行阻力保持在設定的范圍內，以保證除塵器的處理能力和收塵效率。除塵器分為多個倉室，各個倉室逐個單獨清灰，需要清灰的倉室停止過濾，脈沖控制儀輸出電信號關閉該倉室的氣缸提升閥.該倉室內電磁脈沖閥逐個噴吹清灰。
The pulsejet control device is the main control device of the pulse bag type dust collector. Its output electromagnetic drive pulse valve, so as to control the compressed air to bag sequential injection blowing, the running resistance of the dust remover to remain within the limits set, to ensure that the dust collector of the processing power and dust collection efficiency.Dust separator is divided into several storage compartments each compartment is individually clear ash, need to be clear of the warehouse to stop filtering, pulse control instrument output signal to close the chamber of the cylinder valve, the valve of the warehouse indoor electromagnetic pulse valve one by one. 在線/離線、時序/壓差清灰方式 Different modes including on-line, off-line, timed or pressure-differential for option. 啟動/停止信號后，噴吹/遍停機 Shutdown after N times of blowing (or delay) following startup signal and stop signal 輸出點的屏蔽、替代和備用 The shielding, replacement and stand-by services for the output point. 短路、斷路、限位、壓差報警控制 With short circuit, open circuit, limiting and pressure-differential alarm control. 故障查詢及**、*低壓差值記錄 Records about fault query as well as highest and lowest pressure differences.
型號含義
技術指標
輸出總位數=離線閥+電磁脈沖閥數=主機位數(28)十1#擴展單無位數+2#擴展單元位數+…
Total output bits=the number of offline valves+the number of pulse valves=the bite of main frame (28)+the bits of 1" expansion unit+the bits of 2" expansion unit+
| 主機 Model frame | 輸出位數 Output bits | 調節范圍 Adjustable range |
| ODMC-6CSB-12 | 12 | 1-12 |
| ODMC-6CSB-20 | 20 | 1-20 |
| ODMC-6CSB-28 | 28 | 1-28 |
| 主機(壓差) Model frame | 輸出位數 Output bits | 調節范圍 Adjustable range |
| ODMC-6CSD-12 | 12 | 1-12 |
| ODMC-6CSD-20 | 20 | 1-20 |
| ODMC-6CSD-28 | 28 | 1-28 |
| 擴展 Expansion | 輸出位數 Output bits | 調節范圍 Adjustable range |
| ODMC-6CSE-10 | 10 | 1-10 |
| ODMC-6CSE-30 | 30 | 1-30 |
| ODMC-6CSE-60 | 60 | 1-60 |
技術指標
| 工作電壓 Input voltage | AC220V(1±10%)或其它規格or another specification |
| 工作頻率 Operating freguency | 50HZ-60HZ |
| 輸出電壓 Output voltage | DC24V |
| 輸出電流 Output current | 1A |
| 輸出位數 Output digits | 250（離線閥+電磁脈沖閥offline valves+pulse values） |
| 報警輸出 Alarm output | DC24V≤0.2A |
| 壓差測量范圍 Measurement range of differential pressure | 0-6000Pa |
| 精度 Accuracy | ±1.0%+1d |
| 氣管接口 Gus tube interface | 外徑/內徑為6/4mm塑料氣管接頭 |
| 耗電 Power consumption | ＜10W |
| 環境條件 Working environment | -25℃~+55℃、相對濕度＜85% 無嚴重的腐蝕氣體和導電塵埃、劇烈震動或沖擊 |
| 重量 Weight | 2.50kg |
| 體積 Dimensions | 250mm×190mm×99mm(L×W×H) |

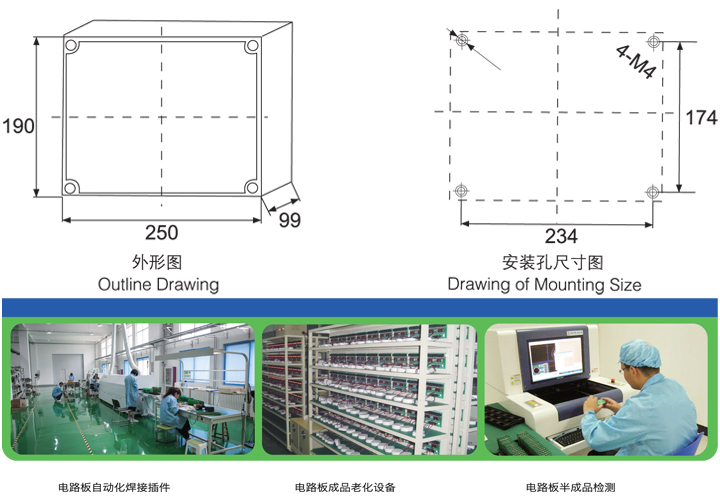

安裝示意圖
