MC系列
直接聯系
上海美礦機械有限公司
上海
面議
美礦
MC系列
4164
--
很好的抗疲勞性、很好的可靠性和多種安裝方式。
MC系列顎式破碎機的主要特性：MACKORN MC系列顎式破碎機均采用創新的模塊化、無焊接框架結構，因而賦予設備很好的抗疲勞性、很好的可靠性和多種安裝方式。得益于精確平衡的整體結構，MC系列顎式破碎機安裝簡便且經濟。配合使用特殊的優質鑄鋼組件和耐久的磨損部件，賦予其**的適用性、杰出的經濟性和較低的噸運行成本
The MACKORN MC Series crushers are based on a revolutionary
modular,non-welded frame construction,offering owners the highest
possible fatigue styrength,excellent reliability and numerous monting
possibilities,Thanks to the accurately balanced structure,the MC Series
jaws are easy and economical to install.Combined with special
high-quality cast steel componets and durable wear parts,means
exceptionally high crusher avalilability,cost-efficient crushing and low
cost per ton.
|
高質量和可靠性 ***的工藝和材料 模塊式、無焊接結構 比同級別破碎機的軸承更大，四個軸承規格相同 鑄鋼動顎體和前后墻體 整體鑄鋼軸承座 可修復的破碎機機架 性能優秀 恰到好處的破碎腔設計 大沖程，**轉速和高功率 小排料口設計 多種齒板和邊護板適用各種應用 |
使用和安裝成本低 易于實現自動化 快速而安全的雙鍥塊排料口調整系統 保護板安裝在顎板后面 橡膠塊安裝 一體化的機電底座 飛輪保護罩結構緊湊，便于維修 定制的給料槽 自動油脂潤滑 應用廣泛的固定和移動設備 石料 礦山(井上和井下) 廢物回收(混凝土，瀝青等) 工業(礦渣，陽極等) |
|
High quality and reliability word-class craftsmanship and material Modular,non welded construction Four equal size bearings that larger than those of most crusher of comparable size Cast steel pitman and crusher frames Single-piece cast steel frame bearing housings Repair crusher construction Outstanding performance Efficient cavity designs Long stroke,optimum speed Small allowed crusher settings The Right jaws and cheek plates for the widest range of applications |
Low operating and installation costs Easy to automate Fast and safe wedge setting adjustments system Protection plates behind the jaw plates Rmper crusher mounting Versatile integral motor base Compact and service friendly flywheel guards Custom feed chute Automatic grease lubrication system Used in a wide range of applications,both stationary and mobile Aggregate Minling(surface and underground) Recycling(concrete,asphalt,etc) Industrial(slag,anodes,etc) |
| 技術數據 |
| MC80 | MC96 | MC100 | MC110 | MC125 | MC140 | MC145 | MC160 | MC200 | ||
|
給料口寬度(MM) Feed opening width |
800 | 930 | 1000 | 1100 | 1250 | 1400 | 1400 | 1600 | 2000 | |
|
給料深度(mm) Feed opening depth |
510 | 580 | 760 | 850 | 950 | 1070 | 1100 | 1200 | 1500 | |
|
電機功率(Kw) Power |
75 | 90 | 110 | 160 | 160 | 200 | 200 | 250 | 400 | |
|
轉速(rpm) speed |
350 | 330 | 260 | 230 | 200 | 220 | 220 | 220 | 200 | |
|
產品尺寸(mm) Porduct size |
緊邊排料口(MM) Closed size setting |
噸/小時 T/H |
噸/小時 T/H |
噸/小時 T/H |
噸/小時 T/H |
噸/小時 T/H |
噸/小時 T/H |
噸/小時 T/H |
噸/小時 T/H |
噸/小時 T/H |
| 0-30 | 20 | |||||||||
| 0-35 | 25 | |||||||||
| 0-45 | 30 | |||||||||
| 0-60 | 40 | 65-85 | ||||||||
| 0-75 | 50 | 80-95 | ||||||||
| 0-90 | 60 | 95-125 | 120-155 | |||||||
| 0-105 | 70 | 115-150 | 140-180 | 150-210 | 190-250 | |||||
| 0-120 | 80 | 130-170 | 160-210 | 170-225 | 210-275 | |||||
| 0-135 | 90 | 150-195 | 180-235 | 190-245 | 235-305 | |||||
| 0-150 | 100 | 165-215 | 200-260 | 215-280 | 255-330 | 290-380 | ||||
| 0-185 | 125 | 210-275 | 250-325 | 265-345 | 310-405 | 350-455 | 380-500 | 400-520 | ||
| 0-225 | 150 | 250-325 | 300-390 | 315-410 | 370-480 | 410-535 | 455-590 | 470-610 | 520-675 | |
| 0-260 | 175 | 290-380 | 350-455 | 370-480 | 425-550 | 470-610 | 520-675 | 540-700 | 595-775 | 760-990 |
| 0-300 | 200 | 420-545 | 480-625 | 530-690 | 590-765 | 610-795 | 675-880 | 855-1110 | ||
| 0-340 | 225 | 590-770 | 655-850 | 680-885 | 750-975 | 945-1230 | ||||
| 0-375 | 250 | 650-845 | 725-945 | 750-975 | 825-1070 | 1040-1350 | ||||
| 0-410 | 275 | 820-1070 | 900-1170 | 1130-1470 | ||||||
| 0-450 | 300 | 980-1275 | 1225-1590 | |||||||
|
注：該數據根據當地使用情況采集獲得。
|

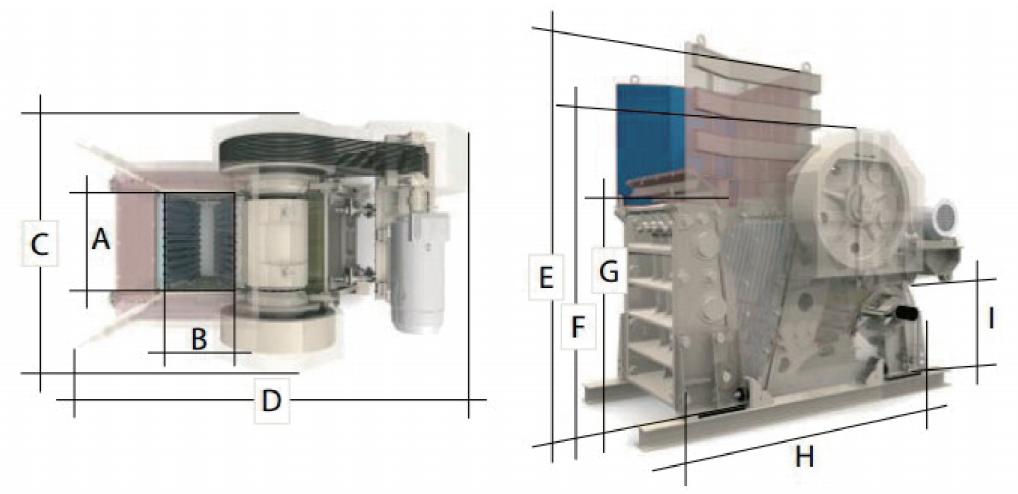

| MC80 | MC96 | MC100 | MC110 | MC125 | MC140 | MC145 | MC160 | MC200 | ||
| A | mm | 800 | 930 | 1000 | 1100 | 1250 | 1400 | 1400 | 1600 | 2000 |
| B | mm | 510 | 580 | 760 | 850 | 950 | 1070 | 1100 | 1200 | 1500 |
| C | mm | 1526 | 1755 | 2420 | 2385 | 2800 | 3010 | 3110 | 3700 | 4040 |
| D | mm | 2577 | 2880 | 3670 | 3770 | 4100 | 4400 | 4600 | 5900 | 6700 |
| D | mm | 1990 | 1610 | 2890 | 2890 | 3440 | 3950 | 4100 | 4580 | 4950 |
| F | mm | 1750 | 1460 | 2490 | 2750 | 2980 | 3140 | 3410 | 3750 | 4465 |
| G | mm | 1200 | 755 | 1700 | 1940 | 2100 | 2260 | 2430 | 2650 | 2800 |
| H | mm | 2100 | 2500 | 2965 | 2820 | 3470 | 3755 | 2855 | 4280 | 4870 |
| I | mm | 625 | 465 | 775 | 580 | 980 | 1050 | 1050 | 1300 | 1400 |
|
破碎機自重 Basic crusher weight |
Kg | 7670 | 9759 | 20060 | 25800 | 37970 | 47120 | 54540 | 7130 | 121510 |
|
破碎機總重 Total weight |
Kg | 9520 | 11870 | 23300 | 29500 | 43910 | 54010 | 63190 | 83300 | 137160 |
