微粉碎系列粉碎機
直接聯系
河北元大雙璇科技有限公司
河北
面議
元大雙璇

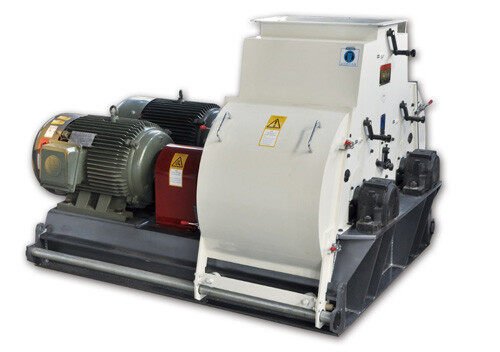

微粉碎系列粉碎機
1064
適用范圍：適用于篩孔直徑0.5～1.5mm的微粉碎，具有出篩快、料溫低，產能高，粒度分布均勻的特點；適合高水分、高油脂、高纖維物料的粉碎。廣泛應用于乳豬料、寵物料、膨化料、發酵料及水產飼料超微前的微粉碎。
Scope of application: It is suitable for micro grinding of 0.5-1.5mm mesh diameter. It has the characteristics of quick sieving, low material temperature, high productivity and even particle size distribution. It is also suitable for grinding of high moisture, high grease and high fiber materials. It is widely used in micro grinding of piglet feed, pet feed, expanded feed, fermented feed and aquatic feed.
微粉碎系列粉碎機產品優勢：advantage
微粉碎系列粉碎機結構先進：Advanced structure:
?采用“雙倍撞擊、破壞環流”的技術，有效解決了微粉碎能耗高及高水分、高油脂、高纖維物料粉碎中糊篩的技術瓶頸。
The patented technology of "double impact force and destroying circulation" is adopted to effectively solve the technical bottleneck of high energy consumption and screen blocking in the crushing of high moisture, high grease and high fiber materials.
?采用“限位模塊代替錘片隔套”技術，更換錘片時間縮短2/3。
Using the patented technology of "hammer limit module", the replacement time of hammer is shortened by 2 / 3.
?錘篩間隙可調，適合不同性質物料的粉碎。
The gap between hammer and screen is adjustable, which is suitable for crushing different materials.
運轉平穩：Stable operation:
?時效處理，消除內應力，延長壽命。
Aging treatment can eliminate internal stress and prolong service life.
?主軸承振動速度≤3.5mm/s；轉子動平衡檢測精度≤0.5g。
The vibration speed of main bearing is ≤ 3.5mm/s; the detection accuracy of rotor dynamic balance is ≤ 0.5g.
?粉碎機正常工作時，可保證放置一枚一元硬幣直立不到。
When the crusher is in normal operation, it can ensure that a one yuan coin can not be placed upright
微粉碎系列粉碎機全自動運行：automatic
?可自動調節喂料量，保證粉碎機工作狀態運轉。
It can automatically adjust the feeding quantity to ensure the best working condition of the crusher.
?可選配軸溫檢測、故障報警、急停開關等系統。
Optional with axle temperature detection, fault alarm, emergency stop switch and other systems.
?可配置自動導向及電流平衡自動調節系統。
it can be equipped with automatic guidance and current balance automatic regulation system.
微粉碎粉碎機主要技術參數Main technical parameters
系列series | 型號 Model | 功率（kw） power | 產能 capacity |
56 | SFSP-S56×20 | 7.5×2 | 可按照kwh產量概算產能: 以國標玉米為例，篩孔孔徑對應的kwh產能： The production capacity can be estimated according to the production capacity of kWh: Take the national standard corn as an example, the kWh capacity corresponding to the mesh diameter: 孔徑（mm）產能（kg/kwh）1.595～1101.283～921.065～710.859～660.528～35篩孔直徑對應的產能（kg/kwh）乘以粉碎機的功率即為粉碎機小時產能。 he capacity corresponding to the screen diameter (kg/kWh) multiplied by the power of the machine is the hourly capacity of the machine. |
SFSP-S56×25 | 11×2 | ||
SFSP-S56×30 | 15×2 | ||
SFSP-S56×30 | 18.5×2 | ||
SFSP-S56×40 | 22×2 | ||
66 | SFSP-S66×30 | 30×2 | |
SFSP-S66×40 | 37×2 | ||
SFSP-S66×50 | 45×2 | ||
SFSP-S66×60 | 55×2 | ||
SFSP-S66×80 | 75×2 | ||
SFSP-S66×100 | 90×2 | ||
SFSP-S66×125 | 110×2 |
