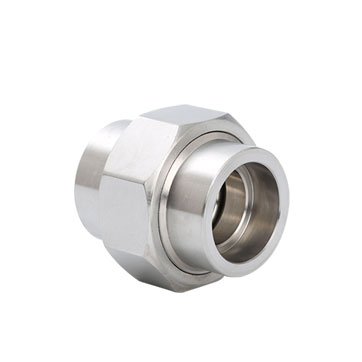

承插焊活接頭
直接聯系
溫州維亞克管業有限公司
浙江
面議
維亞克
承插焊活接頭
641
公稱通徑 Nominal diameter DN(in) | 深插孔 深度 Depth of socket | 壁厚Wall thickness | 管帽頂厚 The thickness of the pipe cap top | 安裝長度 Installatoin length | ||||||
Cmin | Kmin | 雙承口管箍 Double coupling | 單承口管箍 Half coupling | |||||||
A | B(in) | Jmin | 3000 Sch80 | 6000 Schl60 | 9000 XXS | 3000 Sch80 | 6000 Schl60 | 9000 XXS | E | F |
6 | 1/8 | 10 | 3.2 | 4.0 | - | 5.0 | 6.5 | - | 6 | 16 |
8 | 1/4 | 10 | 3.8 | 4.6 | - | 5.0 | 6.5 | - | 6 | 16 |
10 | 3/8 | 10 | 4.0 | 5.1 | - | 5.0 | 6.5 | . | 6 | 18 |
15 | 1/2 | 10 | 4.5 | 5.6 | 9.4 | 6.5 | 8.0 | 11.0 | 10 | 22 |
20 | 3/4 | 13 | 5.0 | 7.0 | 9.8 | 7.0 | 9.0 | 13.0 | 10 | 24 |
注:1)壁厚Cmin為任一點壁厚的*小值。2)異徑管件中小口徑部分中心至承插孔底的距離A與大口徑部分為A相同。3）按順序要求，管件也可以加工承插焊和螺紋混合的聯接形式。
Note:1)Wall thickness Cmin to a minimum wall thickness.2)Reducing pipe fittings of small diameter part of the center distance to the bottom bearing insert A part with large diameter is the same A.3)According to the requirements of the order,pipe fittings can also be processed into socket welding and threaded connection form of hybrid.
