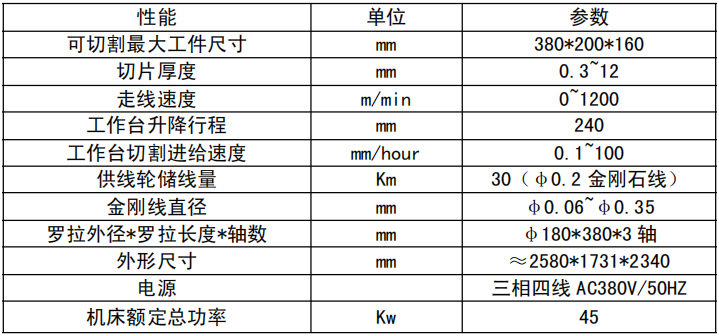

CHTXQ-倒掛380寶石切割機技術參數 Main Specifications

設備用途：本機型的刀架為三羅拉刀架，羅拉長度為380mm，機型主要為滿足半導體生產加工的企業，具有提高待切割件的切割精度和提高表面粗糙度的效果。

Equipment use: The tool holder of this model is a three-roller tool holder, the length of the roller is 380mm, the model is mainly

to meet the semiconductor production and processing enterprises, with the effect of improving the cutting accuracy of the parts

to be cut and improving the surface roughness.

CHTXQ-倒掛380寶石切割機技術特點 Brief Introduction

1、此機器為上置料板搖擺工作臺，材料由上向下進行切割。

2、搖擺驅動器驅動曲柄旋轉，滑動銷軸通過長滑孔驅動上置料板與切割料的組合左右擺動至特定的?度位置，先進行點接觸或短線接觸進行切割。

3、切割金剛石線反復交替在兩條切割面上做切割運動，使切割面對切割金剛石線的阻力變小、切割效率提高減小了金剛石線斷線的概率。

4、裝載面積為：380mm*200mm*160mm。

5、羅拉采用雙錐定位，裝卸方便，高速運轉平穩，精度可靠。

6、主軸精度≤0.01mm，采用結構防塵，運行更穩定，拆裝更方便。

7、操作使用方便，自動升降護罩，工作臺全面展開，便于材料裝卸和羅拉拆裝。

1. This machine is a rocking table for the upper material plate, and the material is cut from top to bottom.

2. The swing driver drives the crank to rotate, and the sliding pin drives the combination of the upper material plate and the cutting material to swing  left and right to a specific Angle position through the long slide hole, and  the point contact or short line contact is made to cut first.

3, the diamond cutting line repeatedly alternates the cutting motion on the two cutting surfaces, so that the cutting resistance to the cutting diamond line is smaller, the cutting efficiency is improved, and the probability of the diamond line breaking is reduced.

4. Loading area: 380mm*200mm*160mm.

5, the roller adopts double cone positioning, easy loading and unloading, stable high-speed operation, reliable accuracy.

6, spindle precision ≤0.01mm, the use of structural dust (patent No. ZL201320681902.7), more stable operation, more convenient disassembly.

7, the operation is easy to use, automatic lifting shield, the workbench is
