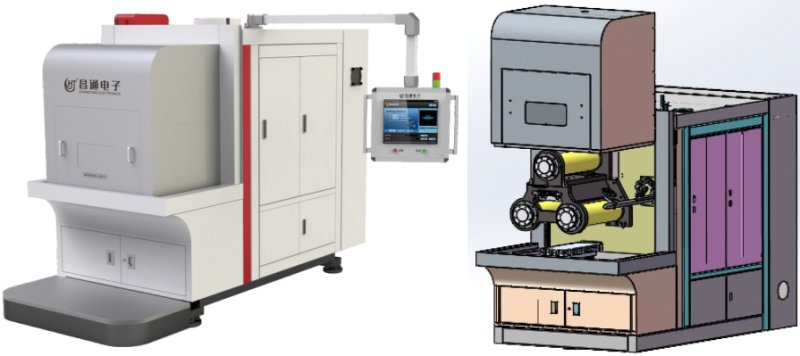

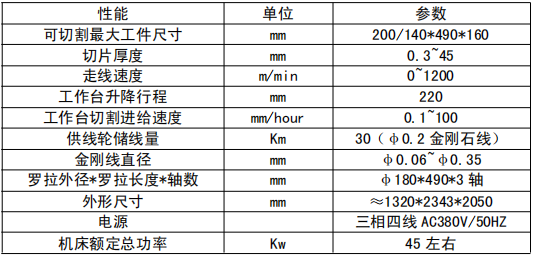

CHTXQ-490搖擺多線切割機技術參數 Main Specifications

設備用途：本機型為滿足切割超硬材料或表面粗糙度有嚴格要求的客戶而研發的一款機型，羅拉長度490mm，工作臺尺寸200mm/140mm*490mm*160mm，提升產品的切割精度。

Equipment use: This model is developed to meet the customers who have strict requirements for cutting superhard materials or

surface roughness. The length of the roller is 490mm, the size of the workbench is 200mm/140mm*490mm*160mm, and the

cutting accuracy of the product is improved.

技術特點 Brief Introduction

1、鑄件機身，使整體結構不變形，高速運轉更穩定。

2、旋轉刀架采用分體設計，可按需求調整?度，利用三?函數運算的方法調順鋼線運動軌跡，保證切割精度。

3、此機器為下置式搖擺工作臺，通過擺動裝置自身擺動的同時帶動待切割件一起擺動，來實現對待切割件的擺動切割。通過軸承與滑道接觸進行滑動帶動搖擺架擺動，從而使搖擺架帶動搖擺側板進行搖擺。

4、更換不同的待切割件時，可調整料板或大理石板的厚度使料的中心與導向塊圓弧的中心線重合，增加了料板切割的準確性。

5、導輪少，導向輪精簡至6個。

6、裝載面積為：200mm/140mm*490mm*160mm，極大的提高了切割精度。

7、操作使用方便，工作臺全面展開，便于材料裝卸和羅拉拆裝。

1, the casting body, so that the overall structure is not deformed, high-speed  operation is more stable.

2, rotary  tool  holder  adopts  split  design,  can  adjust  the  Angle  according  to  demand,  the  use  of  trigonometric  function

operation  method  to  adjust  the steel line movement track, to ensure cutting accuracy.

3, the  machine  for  the  lower  type of  swing  table,  through  the  swing  device itself swings at the same time to drive the parts to be cut together to achieve  the swinging cutting of the cutting parts. Sliding through the contact between the  bearing  and

the  slide  drive the  swing  frame to  swing,  so that the  swing frame drives the swing side plate to swing.

4. When replacing different parts to be cut, the thickness of the material plate or  marble  slab  can  be  adjusted to  make the  center  of the  material  coincide with the center line of the guide block arc, which increases the accuracy of the cutting of the material plate.

5, the guide wheel is less, the guide wheel is simplified to 6.

6, the loading area is: 200mm/140mm*490mm*160mm, greatly improving the cutting accuracy.

7, the operation is easy to use, the workbench is fully developed, easy to load
