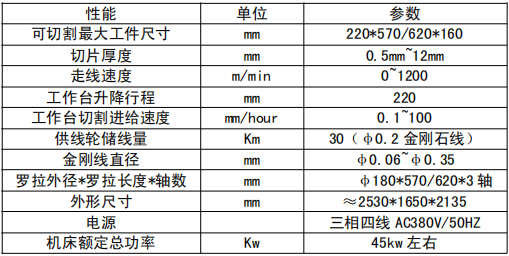

CHTXQ-2255龍門架多線切割機技術參數 Main Specifications

設備用途：本機型的刀架為固定刀架，一共三個羅拉，羅拉長度為570/620mm，用于切割厚度0.3mm-12mm的產品。

Equipment use: The tool holder of this model is a fixed tool holder, with a total of three rollers, the length of the roller is 570/620mm, which is used for cutting products with a thickness of 0.3mm-12mm.

CHTXQ-2255龍門架多線切割機技術特點 Brief Introduction

1、設備整機鑄件，刀架采用龍門架結構，龍門架坐落在整體鑄件之上和整機鑄件合為一體，電機轉動無振動，高速運轉更穩定

2、三羅拉刀架鑄造整體成型，獨立伺服電機驅動平穩高速運轉，確保切割質量。

3、三電機獨立驅動三羅拉，使三羅拉都成為主動軸，降低鋼線對羅拉的磨損，提高羅拉的使用時間。

4、羅拉?架安裝孔用加工中心一次加工成型，確保主軸安裝同軸度要求。

5、羅拉采用雙錐結構，拆卸方便、定位準確、高速運轉平穩，精度可靠。

6、下置式工作臺，材料由下向上上升切割，上下料方便。

7、雙澆砂設計，更有利于廢屑的排放和清洗。

8、裝載面積大，分別為：220mm*570/620mm*180mm。

9、操作使用方便，自動升降護罩，工作臺全面展開，便于材料裝卸和羅拉拆裝。

1, the  machine  casting,  the  tool  frame  adopts  the  gantry  structure,  the  gantry  is located  on the  whole  casting  and the  machine  casting into one, the motor rotation without vibration, high-speed operation is more stable.

2, three  roller  tool  frame  casting  overall  forming,  independent  servo  motor drive smooth high-speed operation, to ensure cutting quality.

3, three motor independently drive three rollers, so that the three rollers are the drive shaft, reduce the wear of the steel wire to the roller, improve the use of the roller time.

4, the roller bracket installation hole with a machining center molding, to ensure that the spindle installation coaxial requirements.

5, the  roller  adopts  double  cone  structure,  easy  disassembly,  accurate  positioning, stable high speed operation, reliable accuracy.

6, under  the  table,  the  material  from  the  bottom  up  to  cut,  loading  and  unloading convenient.

7, double casting sand design, more conducive to waste discharge and cleaning.

8, the loading area is large, respectively: 220mm*570/620mm*180mm.

9, the operation is easy to use, automatic lifting shield, the workbench is fully expanded, easy to load and unload materials and roll.

10, high efficiency and low consumption, the equipment does not need air source, the power consumption of the whole machine does not exceed 15kw.
